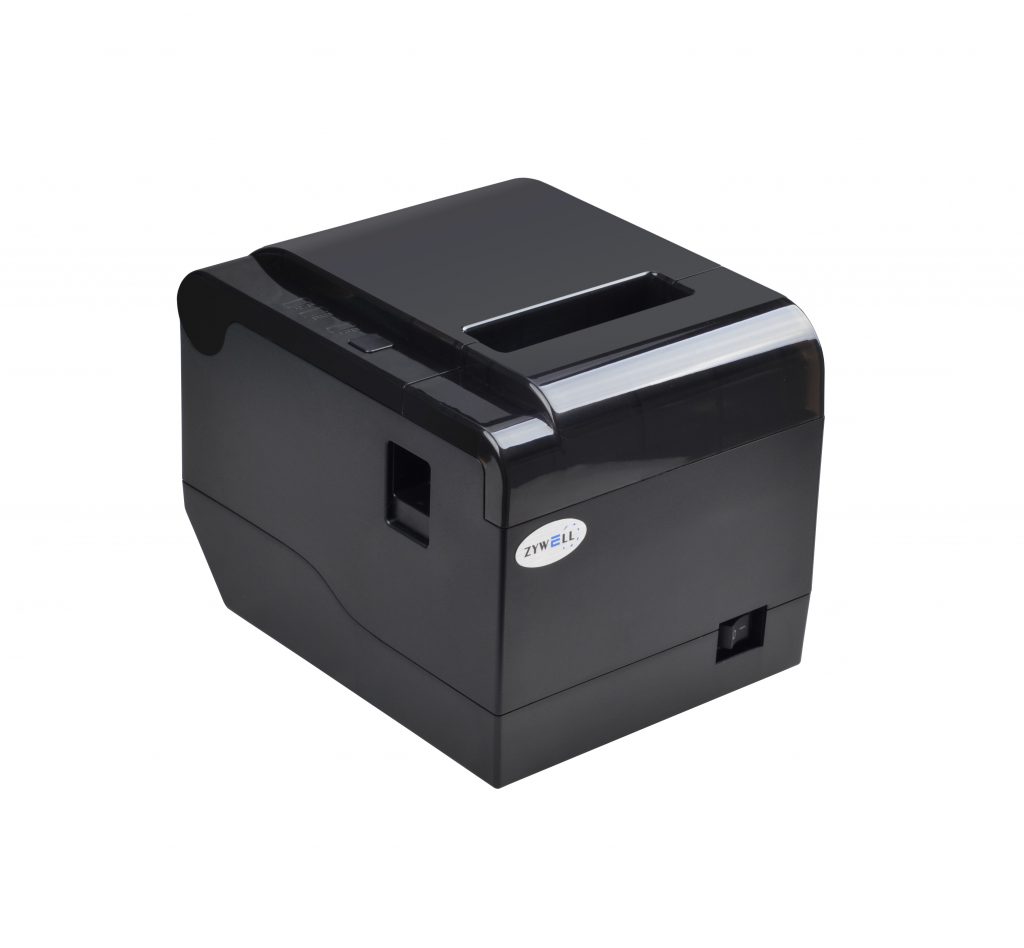

ZYWELL ZY-809 Thermal Barcode Printer
- Direct Thermal Printing
- 203 DPI Resolution
- 152mm / Second Printing Speed
- 20mm - 80mm Printing Width
- 80mm Ribon Outer Diameter
- Operating Temperature 5-45°C
- 1.000.000 Cutting Life
- 96 Languages Characters Support Including English
- Automatic Paper Cutter / Partial Cut / Full Cut
Print method drict, thermal
Print Speed 152mm/Sec
Effective Print Width 72mm / 512 dots/line
Characters per line Font A: 42 columns, 180dpi Font B : 56 columns, 180dpi
Internal memory 64MB
Motherboard ow power consumption – automatic standby mode enables 30% less power use on average
Paper loading automatic
Alphanumeric 95
Extended graphic 128 x 18 page
International characters 14
Barcodes UPC - A, UPC-E, EAN-8, Code 39, Code 93, Code 128, ITF, Codabar, 2D PDF417, QR Code
Emulation ESC/POS compatible
Drivers Windows (XP, 2000, 2003, Vista, WEPOS) / Linux

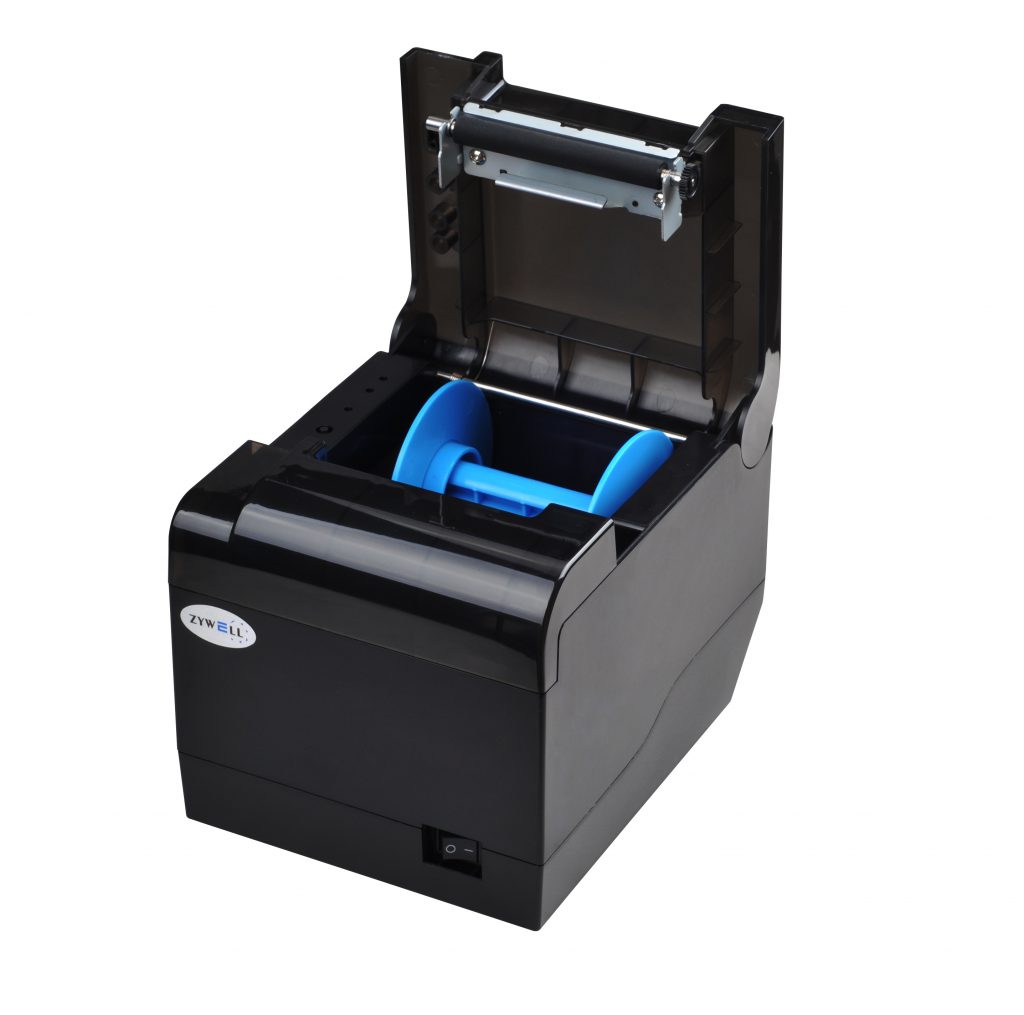

Sensor end-of-roll, near end-of-roll, cover open

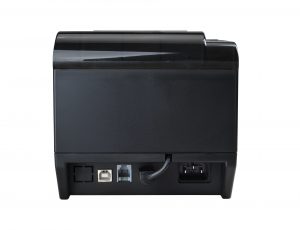

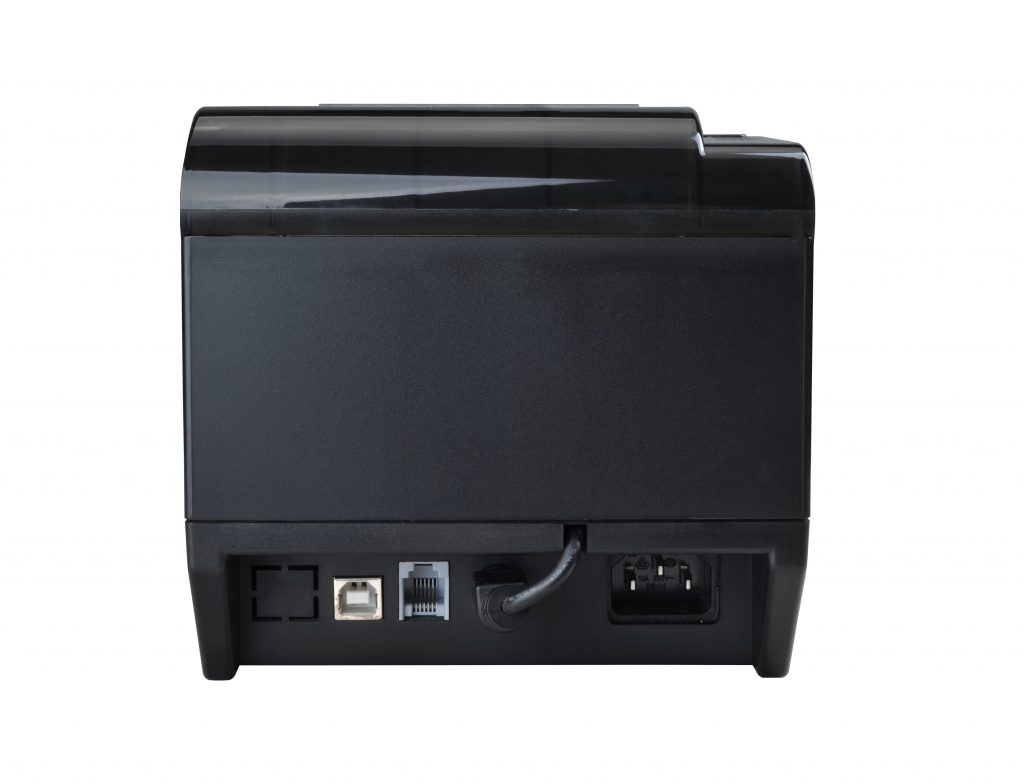

Till output port(s) 1 dual port (for 1 drawers) - RJ11 6-pin connector
Interfaces Triple interface RS232 Serial - USB & Ethernet dual (non-modifiable)
Power supply External 24V - 2.5A
Auto cutter guillotine type Max. 30 cuts/minute
Cut type total or partial
Width: 79.5 mm +/- 0.5 mm
Thickness 0.065 - 0.1mm
Max. roll diameter 83mm
MCBF 35-50 million lines depending on type of use and paper thickness Printer head lifespan: 160km Paper cutter lifespan: Approx. 1.5 million cuts
Operating temperature -20 to +60°C
Operating humidity 10% to 90% (without condensation)
Dimensions (D x W x H) 177 x 142 x 149mm
Weight 1.9kg box
Colour Black

ZYWELL ZY-809 Thermal Barcode Printer Frequently Asked Questions

The principle of the thermal printer is heated after a while, which becomes a dark (usually black or blue) film covered with a layer of pale material (usually paper) transparent film. Image Heating is created by the chemical reaction created in the film. This chemical reaction is not at a certain temperature. High temperatures can speed up the chemical reaction. When the temperature is below 60,, the film should go with a long as many years as even being dark; and when its temperature is 200 ℃, this reflection will be completed within a few microseconds. By selecting a thermal printer, it is heated to a predetermined position on the corresponding graphical thermal paper. The contact with the heat sensitive material is provided by a small electric heater with the print head. The heater forms a heating element arranged in square dots or strips guided by the printer logic control with the corresponding graphic on the thermal paper. Heating elements are controlled by logic circuit but also controlling feed can get graphic label or printing on all paper.
