● Ergonomic, Quick and Stylish design
● 752 X 480 Pixels CMOS Sensor
● 0,127 mm (5 mil) resolution
●32 Bit Microprocessor
● Serial Port and USB Connection Options

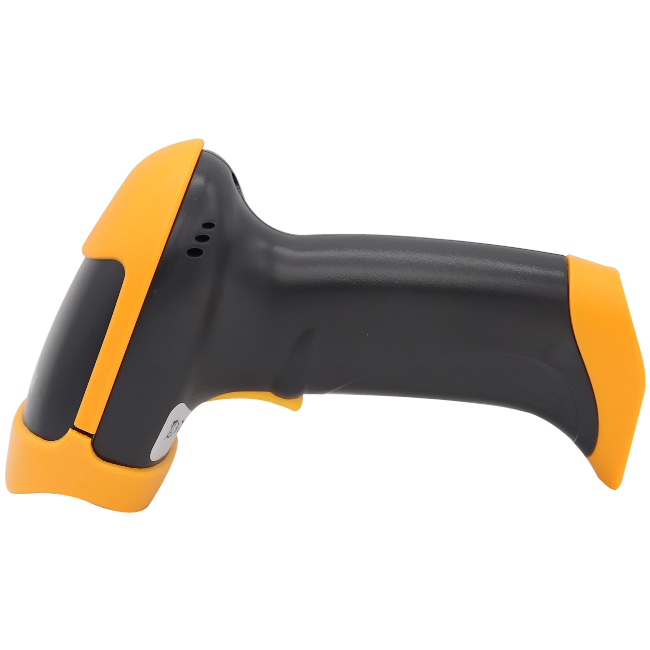

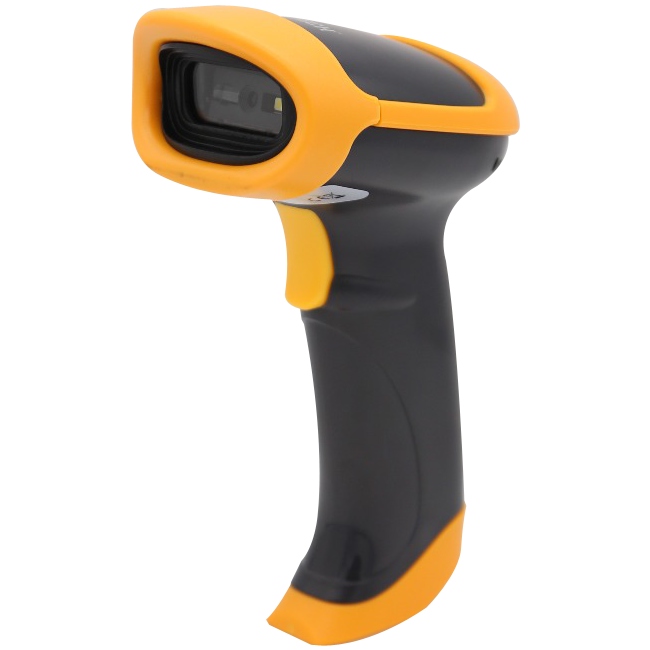

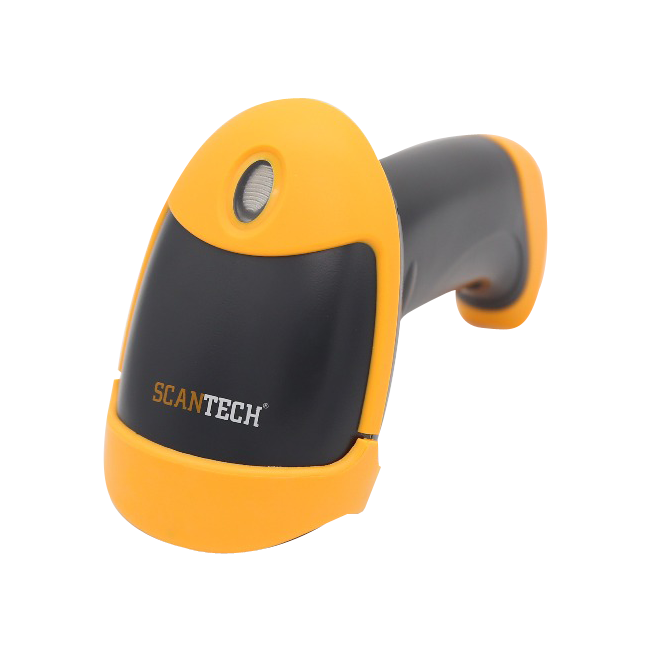

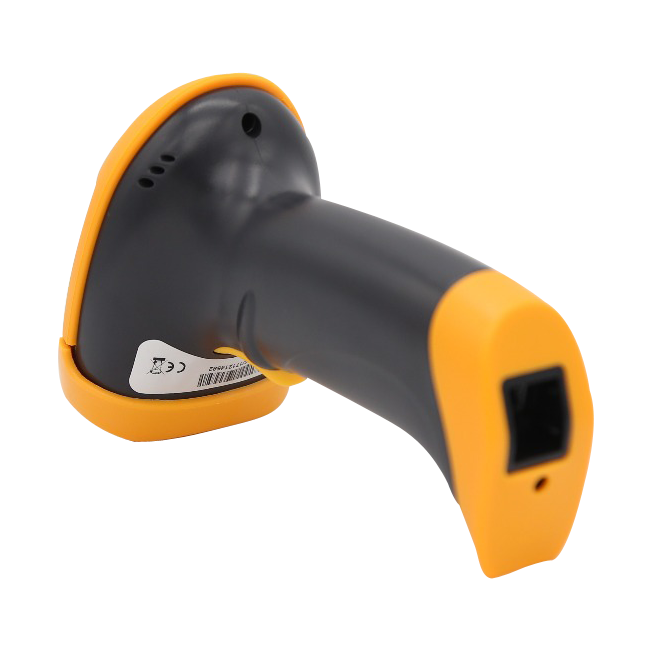

MODEL | DC-200 2D Wired Reader | |
---|---|---|
Image Sensor | CMOS | |
Resolution | 752 X 480 Pixels | |
752 X 480 Pixels | 625 nm ± (10 nm) Red LED | |
Minimum Bar Width | 5 Mil (0.127 mm) | |
Scanning Distance | 55 - 320 mm (EAN-13, 13 mil) 70 - 155 mm (PDF417, 6.67 mil) 55 - 175 mm (Datamatrix, 10 mil) 40 - 160 mm (QrCode, 15 mil) | |
Return Accuracy | Roll: 360° Skew: ±55° Pitch: ±55° | |
Print Contrast | Min: %30 | |
Processor | 32 Bit | |
Indicators | Sound and LED | |
Supported Interfaces | RS-232C ve USB | |
Supported Interfaces | RS-232C ve USB |
Electrical | ||
---|---|---|
Input Voltage | 5 VDC ±%10 | |
Current Values | Operating Mode: 160 mA Sleep Mode: 35 mA |
Environmental | ||
---|---|---|
Operating temperature | -20 °C ~ 60 °C | |
Storage Temperature | -40 °C ~ 80 °C | |
Moisture | 5% ~ 95% (Non-condensing) | |
Impact Resistance | 1.8 Meter | |
IP Standard | IP54 | |
Light Level | Max 100.000 Lux |
Supported Barcode Types | ||
---|---|---|
Barcode Types | 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A,UPC-E,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN,Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5,Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey,MSI-Plessey 2D: PDF 417,Data Matrix(ECC200,ECC000,050,080,100,140),QR Code |
Physical | ||
---|---|---|
Height | - | |
Length | - | |
Width | - | |
Weight | - | |
Case material | ABS PLASTIC | |
Cable | - | |
Colors | Orange & Black |
SCANTECH DC-200 2D WIRED Frequently Asked Questions
By Barcode Scanner, it enables the serial number it detects to be transmitted to electronic environment. After this step, the information transmitted (on the computer or terminal) is analyzed and the result is reflected, so that the data entry is realized much faster and more accurately. After the barcode is read with the appropriate reader, the reader converts the black and white lines into electrical signals. The decoder’s decoders turn these signals into numbers or characters we can understand. The electronic signals generated by the beam and barcode bars emitted by these readers are perceived by these readers and transferred to computers as numbers or characters. Dark bars in the barcode absorb light, and gaps reflect light. Thus, electronic signals are formed. Barcode readers can have different interfaces. They can be keyboard, serial port or usb connected. In addition, there are also radio frequency barcode readers. They are wireless and can transfer the scanned barcode to the computer instantly within its own activity area.
First of all, we open 5 pages of the booklet in the box. We read the barcodes on page 5 that read PARA FOR TX and PARA FOR RX. So your device is paired with dangle. Note: Do this operation only when a device is attached. Otherwise, all readers in the environment will match each other.
First of all, we open 5 pages of the booklet in the box. We read the barcodes on page 5 that read PARA FOR TX and PARA FOR RX. So your device is paired with dangle. Note: Do this operation only when a device is attached. Otherwise, all readers in the environment will match each other.
1) Barcode scanner may be out of charge. 2) If there is no laser although it is charged, we have to take the device to our technical service.
No, the dc-200 barcode scanner does not have black and color ground reading capability.
