DC-100 1D

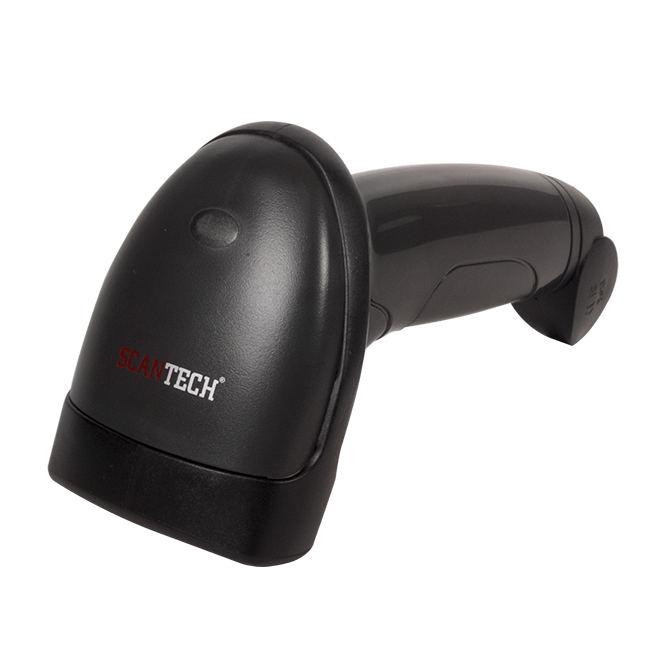

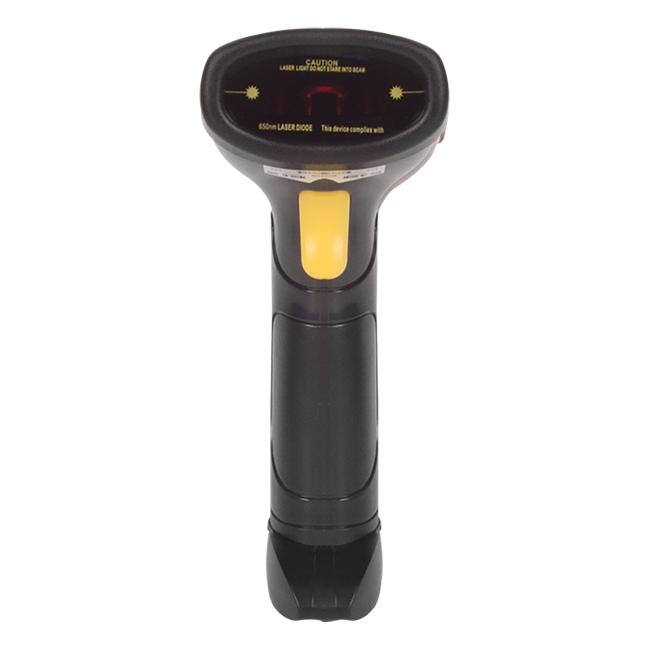

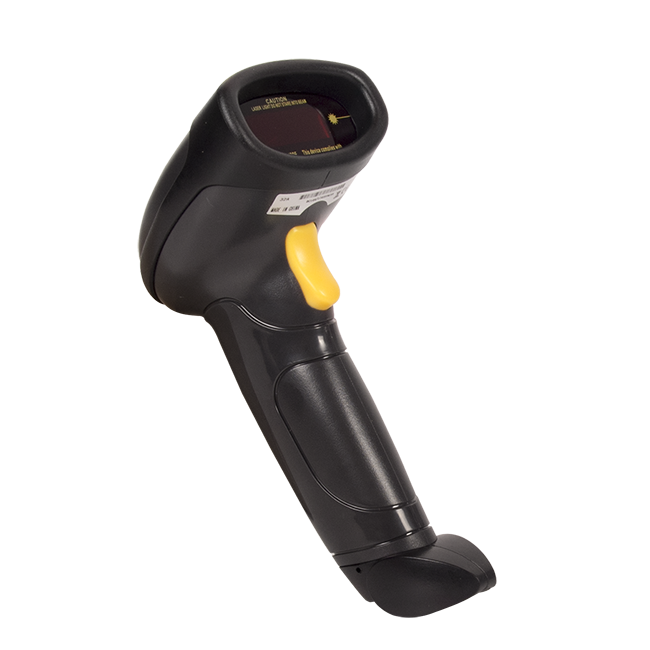

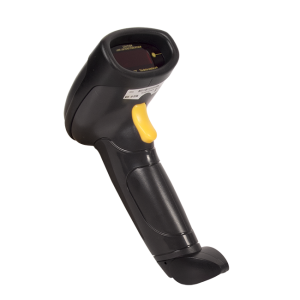

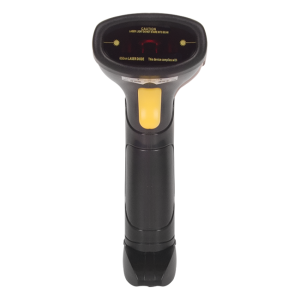

DC-100 1D Wired Barcode Scanner
● 1D Single Line Laser Barcode Scanner
● Lightweight and robust design
● 200 Scans Per Second
● 0.1 mm (4 mil) resolution
● 0 ~ 100 cm okuma mesafesi
● 32 Bit Microprocessor
● Serial Port, PS / 2 and USB Connection Options
Share
MODEL Scantech DC-100 1D Wired Barcode Scanner
Processor 32 Bit
Source of light 650 nm ± 10% Visible Laser Diode (VLD)
Number of scan lines Single scan line
Scanning distance 0 - 1000 mm
Scanning Speed 200 scans per second
Minimum Bar Width 0,102 mm (4 mil)
Rotation Angles ± 70 ° (Left-Right), ± 70 ° (Up-Down)
Stimulants LED and Beep
Print contrast %30
Supported Interfaces PS/2, RS-232C, USB
Environmental
Operating temperature -10°C ~ 50°C
Storage Temperature -20 °C ~ 60 °C
Moisture 5% ~ 95% (Non-condensing)
Impact Resistance 1.8 Meter
IP Standard IP54
Supported Barcode Types
Barcode Types EAN/JAN-8,13 UPC-A; UPC-E; CODE-128; CODE-93; RSS-Standard, Limited, Expanded;CODE-39;Inter-Leaved 2/5;Standard 2/5;Matrix 2/5;Industrial 2/5;China-Post;MSI;MSI-PLESSEY;CODE-BAR;CODE-11
Physical
Height 70 mm
Length 170 mm
Width 96 mm
Weight 175 Gram
Case material ABS Plastic
Electrical
Input Voltage DC 3.5-5.5V
Current Values Standby Mode: 25 mA Operating Mode: 50 mA Max: 100 mA

SCANTECH DC-100 1D WIRED Frequently Asked Questions

By barcode scanner, it enables the serial number it detects to be transmitted to electronic environment. After this step, the information transmitted (on the computer or terminal) is analyzed and the result is reflected, so that the data entry is realized much faster and more accurately. After the barcode is read with the appropriate reader, the reader converts the black and white lines into electrical signals. The decoder’s decoders turn these signals into numbers or characters we can understand. The electronic signals generated by the beam and barcode bars emitted by these readers are perceived by these readers and transferred to computers as numbers or characters. Dark bars in the barcode absorb light, and gaps reflect light. Thus, electronic signals are formed. Barcode readers can have different interfaces. They can be keyboard, serial port or usb connected. In addition, there are also radio frequency barcode readers. They are wireless and can transfer the scanned barcode to the computer instantly within its own activity area.

First of all, we open 5 pages of the booklet in the box. We read the barcodes on page 5 that read PARA FOR TX and PARA FOR RX. So your device is paired with dangle. Note: Do this operation only when a device is attached. Otherwise, all readers in the environment will match each other.a

First of all, we open 5 pages of the booklet in the box. We read the barcodes on page 5 that read PARA FOR TX and PARA FOR RX. So your device is paired with dangle. Note: Do this operation only when a device is attached. Otherwise, all readers in the environment will match each other.

1) Barcode scanner may be out of charge. 2) If there is no laser although it is charged, we have to take the device to our technical service.

No,the dc-100 barcode scanner has no memory.
