- Selectable Different CPU Classes ( Bay Trail J1900,Core - I3/I5/I7)
- Fanless Cooling ( No Ventilation)

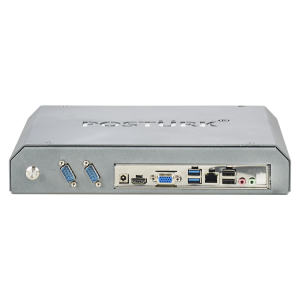

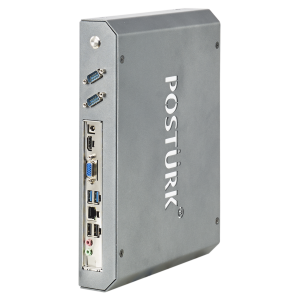

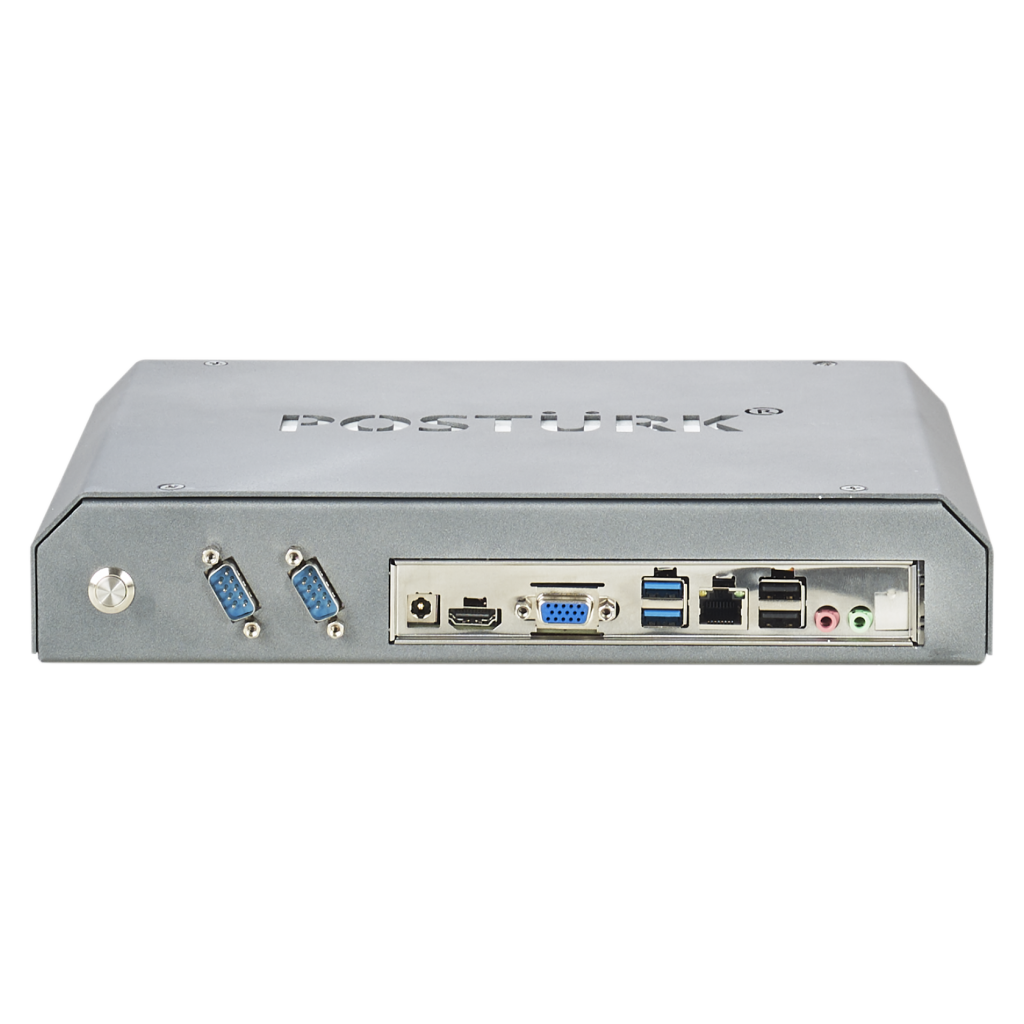

- Multiple Connect Options 4 x USB 2.0, 2 x USB 3.0, 1 x Ethernet, 2 x RS232
- 2.5''HDD or SSD Driver Nest Accessible From Outside
- Vesa Mounting Slots
- 2 Years Warranty
MODEL | J1900 | I5 |
---|---|---|
Processor | Intel BayTrail J1900 2.0 GHZ (Quad Core) | Intel Celeron/Pentium/CoreTM I3/I5/I7 processor |
Chipset | Intel BayTrail - D | Intel Nm70 Express |
Memory (RAM) | 4GB DDR3 SODIMM to 8GB (1333/1666 MHz) | 4GB DDR3 SODIMM to 8GB (1333/1666 MHz) |
Graphics Memory | Intel HD Graphics E3800 Core | Intel HD Graphics 520 |
Flash Disk | 120 GB SSD HDD 2.5’’ /MSATA | 120 GB SSD HDD 2.5’’ /MSATA |
HDD (option) | 1 x HDD 2.5’’ (rack mounted) | 1 x HDD 2.5’’ (rack mounted) |
INPUTS/ OUTPUTS | ||
---|---|---|
VGA | 1 | 1 |
Power Button | 1 | 1 |
USB | 4 x USB 2.0 +2 x USB 3.0 | 6 x USB 3.0 |
Serial/COM | 2 x RS-232 1 x LPT (Option) | 2 x RS-232 1 x LPT (Option) |
LAN | 1 LAN 10/100/1000 | 1 LAN 10/100/1000 |
Cash Drawer | 1 x RJ 11 (12V / 24V) Option | 1 x RJ 11 (12V / 24V) Option |
Display Port | 1 (for 2nd screen) | 1 (for 2nd screen) |
HDMI | 1 | 1 |
DRIVERS | ||
---|---|---|
Mini PC Port | Integrated | |
Power Supply | Adapter 12V /4-7A | |
Dimensions (W x H x D) | 250 x 215 x50mm / (working position tilted at 45°) | |
Net Weight | 2.2kg / (not including power supply or customer display) | |
Materials | High Quality Case, Aluminum Casting & Plastic | |
Colours | 3 modul colours (Black-Red-White) | |
Comptatible OS | Windows 7, Windows 8.1, Windows10, Posready 7 |
Box PC Windows Frequently Asked Questions
These products contain the same “processor, motherboard, ram, storage, network connection, image-sound transfer and power connection” components that are used in home and workplaces. We can classify the usage areas of box pc computers as industrial, education and entrepreneurship.
Yes, box pc can be hung on the wall.
