- Intel RK-3288 1.8 GHZ (Quad Core)
- Fanless Cooling ( No Ventilation)

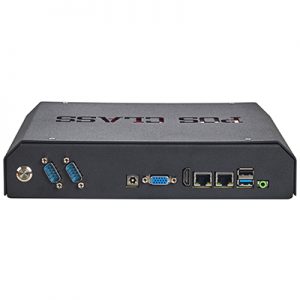

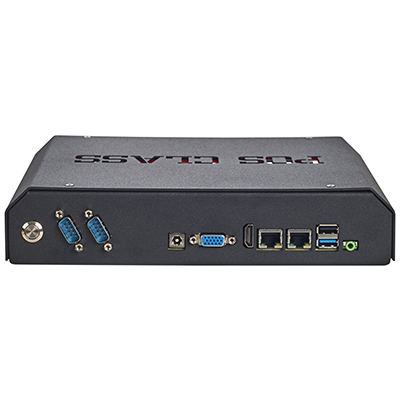

- Multiple Connect Options 4 x USB 2.0, 2 x USB 3.0, 1 x Ethernet, 2 x RS232
- 2.5''HDD or SSD Driver Nest Accessible From Outside
- Vesa Mounting Slots
- 2 Years Warranty
MODEL | ||
---|---|---|
Processor | Intel RK-3288 1.8 GHZ (Quad Core) | |
Chipset | Rockchip RK3288 | |
Memory (RAM) | 2 GB DDR3 | |
Disk | 8 GB | |
HDD (option) | 1 x HDD 2.5’’ (rack mounted) |
INPUTS/ OUTPUTS | ||
---|---|---|
VGA | 1 | |
Power Button | 1 | |
USB | 4 x USB 2.0 + 2 x USB 3.0 | |
Serial/COM | 2 x RS-232 1 x LPT (Option) | |
LAN | 1 LAN 10/100/1000 | |
Cash Drawer | 1 x RJ 11 (12V / 24V) Option | |
Display Port | 1 (for 2nd screen) | |
HDMI | 1 |
DRIVERS | ||
---|---|---|
Mini PC Port | Integrated | |
Power Supply | Adapter 12V / 4-7A | |
Dimensions (W x H x D) | 250 x 215 x50mm / (working position tilted at 45°) | |
Net Weight | 2.2 kg / (not including power supply or customer display) | |
Materials | High Quality Case, Aluminum Casting & Plastic | |
Colors | 3 modul colours (Black-Red-White) |
Box PC Android Frequently Asked Questions
These products contain the same “processor, motherboard, ram, storage, network connection, image-sound transfer and power connection” components that are used in home and workplaces. We can classify the usage areas of box pc computers as industrial, education and entrepreneurship.
Yes, box pc can be hung on the wall.
