● Wifi (433 Mhz) Contact
● Max. 500 Meters Transmission Distance
● 0.076 mm (3 miles) Resolution
●0 ~ 750 mm Reading Distance
●Resistant to drop from 1.8 meters
● Standards in IP54
● USB Connection

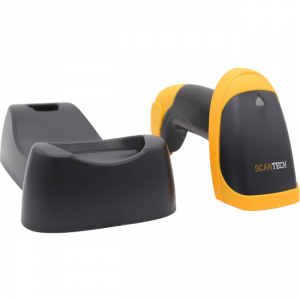

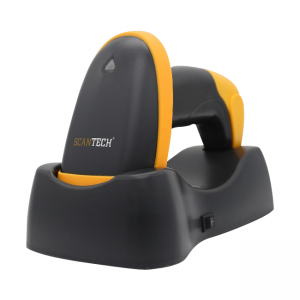

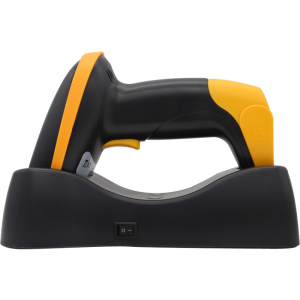

MODEL | DC-250 2DLONG DISTANCE WIRELESS BARCODE SCANNER | |
---|---|---|
Image Sensor | CMOS | |
Resolution | 752 X 480 Piksel | |
Source of Light | 650 nm ± %10 Visible Red LED | |
Minimum Bar Width | 3 Mil (0.076 mm) | |
Scanning distance | 0 ~ 750 mm (EAN-13, 13 mil) PCS %90 | |
Print Contrast | Min: %20 | |
Indicators | Sound and LED | |
Supported Barcode Types | 1D (Linear) and 2D (DataMode) |
Supported Barcode Types | ||
---|---|---|
Barcode Types | 1D: Standard 1D Barcodes 2D: BARCode, Data Matrix, PDF417 | |
Power Supply (Cradle) | From the device it is connected to via USB | |
Battery (Reader) | 3.7V, 1000 mAH Polymer Li-Ion | |
Battery Life | Study: About 20 Hours Waiting: About 1 Month | |
Current Values | In Operating Mode: 130 mA Maximum: 220 mA |
Communication | ||
---|---|---|
Communication Method | Wifi | |
Radio Frequency | 433 Mhz ISM Frequency | |
Supported Interfaces | USB |
Environmental | ||
---|---|---|
Operating temperature | -20 °C ~ 60 °C | |
Storage Temperature | -30 °C ~ 90 °C | |
Moisture | %5 ~ %95Condensation) | |
Impact Resistance | 1.8 Meter | |
IP Standard | IP54 | |
Electrostatic Protection | 15KV |
Physical | ||
---|---|---|
Height | 227 mm | |
Length | 138 mm | |
Width | 107 mm | |
Weight | 415 Gram | |
Case material | ABS Plastic | |
Elektrostatik Koruma | 15KV | |
Cable Length | 2 Meters | |
Colors | Orange & Black |
Electrical | ||
---|---|---|
Input Voltage | DC 3.6V ~ 4.2 V | |
Power Supply (Cradle) | From USB Connected Device | |
Battery (Reader) | 3.7V, 1000 mAH Polymer Li-Ion | |
Battery Life | Working: Approximately 20 Hours Standby: Approximately 1 Month | |
Power consumpation | Operating Mode: 130 mA Max: 220 mA | |
Cable Length | 2 Metre | 2 Meters |
Color | c |
SCANTECH DC-250 2D WIRELESS Frequently Asked Questions
By barcode scanner, it enables the serial number it detects to be transmitted to electronic environment. After this step, the information transmitted (on the computer or terminal) is analyzed and the result is reflected, so that the data entry is realized much faster and more accurately. After the barcode is read with the appropriate reader, the reader converts the black and white lines into electrical signals. The decoder’s decoders turn these signals into numbers or characters we can understand. The electronic signals generated by the beam and barcode bars emitted by these readers are perceived by these readers and transferred to computers as numbers or characters. Dark bars in the barcode absorb light, and gaps reflect light. Thus, electronic signals are formed. Barcode readers can have different interfaces. They can be keyboard, serial port or usb connected. In addition, there are also radio frequency barcode readers. They are wireless and can transfer the scanned barcode to the computer instantly within its own activity area.
First of all, we open 5 pages of the booklet in the box. We read the barcodes on page 5 that read PARA FOR TX and PARA FOR RX. So your device is paired with dangle. Note: Do this operation only when a device is attached. Otherwise, all readers in the environment will match each other.
First of all, we open 5 pages of the booklet in the box. We read the barcodes on page 5 that read PARA FOR TX and PARA FOR RX. So your device is paired with dangle. Note: Do this operation only when a device is attached. Otherwise, all readers in the environment will match each other.
1) Barcode scanner may be out of charge. 2) If there is no laser although it is charged, we have to take the device to our technical service.
Read the barcode below.
