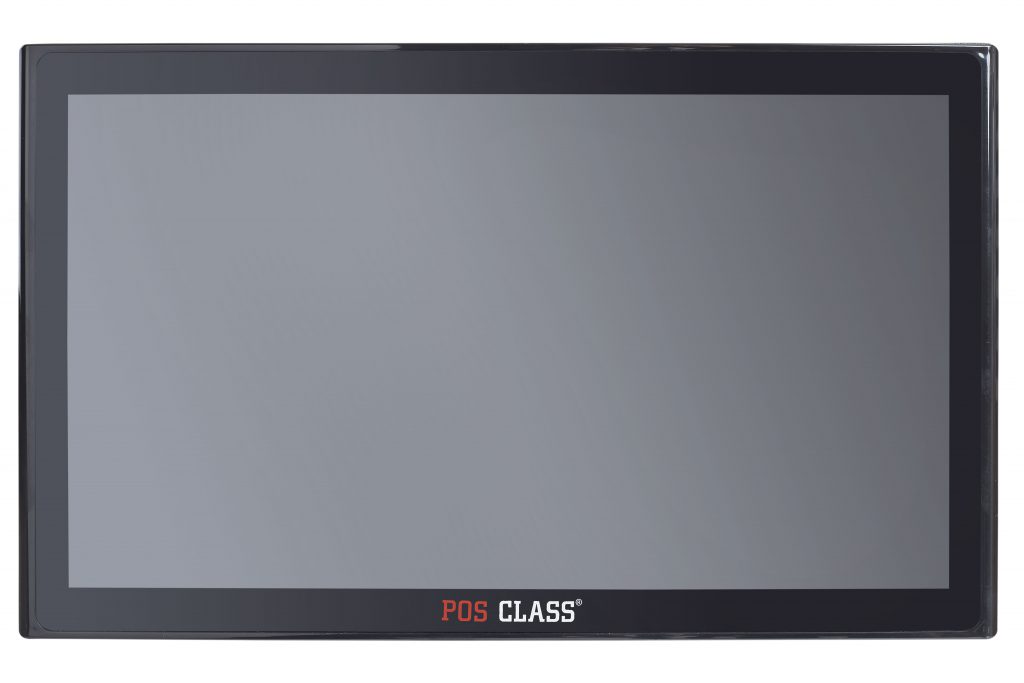

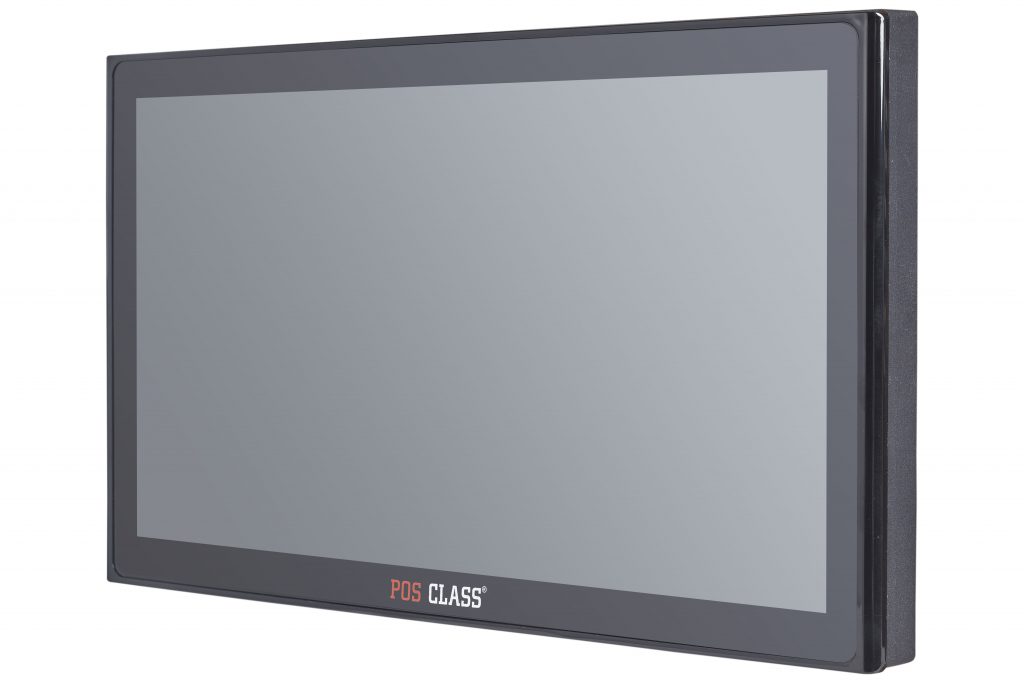

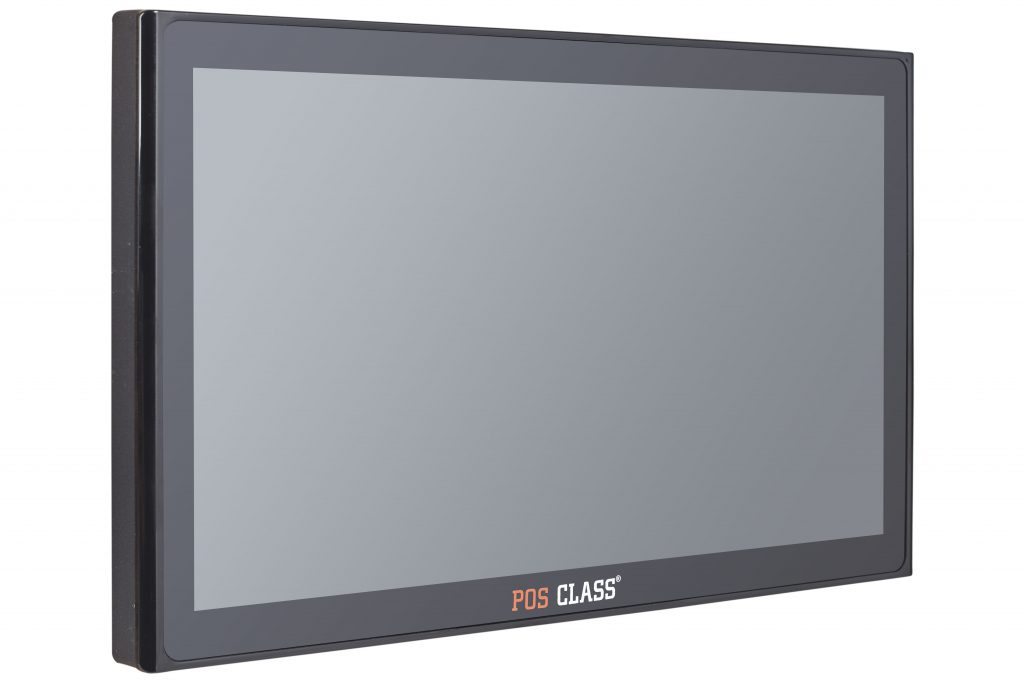

PPC-1850M
18.5'' All In One Multi-Touch Panel Pc
- Integrated Display
- Multi-Touch Screen,10 Fingers
- High Quality Case,Aluminum Casting & Plastic
- Selectable Different CPU Classes ( Bay Trail J1900,Core - I3/I5/I7)
- Fanless Cooling ( No Ventilation)
- IP65 Level Sealing From Front Panel
- Multiple Connect Options 4 x USB 2.0, 2 x USB 3.0, 1 x Ethernet, 2 x RS232
- 2.5'' HDD or SSD Driver Nest Accessible From Outside
- 10.1'' Screen on Demand , VFD Support
- Vesa Mounting Slots
- 2 Years Warranty
18.5''
Share
MODEL J1900 I5
Processor Intel BayTrail J1900 2.0 GHZ (Quad Core) Intel Celeron/Pentium/CoreTM I3/I5/I7 processor
Chipset Intel BayTrail - D Intel Nm70 Express
Memory (RAM) 4GB DDR3 SODIMM to 8GB (1333/1666 MHz) 4GB DDR3 SODIMM to 8GB (1333/1666 MHz)
Graphics Memory Intel HD Graphics E3800 Core Intel HD Graphics 520
Flash Disk 120 GB SSD HDD 2.5’’ /MSATA 120 GB SSD HDD 2.5’’ /MSATA
HDD (option) 1 x HDD 2.5’’ (rack mounted) 1 x HDD 2.5’’ (rack mounted)
Touch Panel 18.5“ LED LCD projected Capacitive panel 18.5“ LED LCD projected Capacitive panel
Resolution 1366 x 768 1366 x 768
INPUTS/ OUTPUTS
VGA 1 1
Power Button 1 1
USB 4 x USB 2.0 + 2 x USB 3.0 4 x USB 2.0 +2x USB 3.0
Serial/COM 2 x RS-232 1 x LPT (Option) 2 x RS-232 1 x LPT (Option)
LAN 1 LAN 10/100/1000 1 LAN 10/100/1000
Cash Drawer 1 x RJ 11 (12V / 24V) Option 1 x RJ 11 (12V / 24V) Option
Display Port 1 (for 2nd screen) 1 (for 2nd screen)
HDMI 1 1
DRIVERS
Customer Display Graphic customer display (high readability) - (option)
Mini PC port Integrated
Power Supply Adapter 12V / 4-7A
Dimensions (W x H x D) 384 x 320 x 90mm / (working position tilted at 45°)
Net Weight 3.3kg / (not including power supply or customer display)
Materials High Quality Case, Aluminum Casting & Plastic
Colours 1 modul colour (Black)
Comptatible OS Windows 7, Windows 8.1, Windows10, Posready 7
OPTIONS & PERIPHERALS
Graphic Customer Display (high readability)
Cards,Dallas Keys & Addimat Readers
2 nd Screen (dual screen system)

18.5” All In One Multi-Touch Panel Pc Frequently Asked Questions

The increasing competencies and development of the automation industry require faster and more powerful technologies that will enable people to interact better with machines. Panel pc was indeed a very similar technology of HMI systems, the difference is essentially data collection capacity.

Open Galaxy touch. Choose Tools clear and calibrate. Touch the 4 dots that appear on the screen. After completing this process, press OK.

Windows 7 does not support 3.0 usb.

Multi touch (capacitive) touch panels do not need any driver to calibrate.

We right click on my computer. We choose the features. In the processor section, we see which motherboard your panel pc has. You can download the drivers you need according to the motherboard models from the support and downloads section at www.posclass.com/en

My computer right click. We choose manage. We choose disk management. System disk right click. We say shrink the unit. We write the MB we want to create in the amount of space to be reduced. We click on the Minimize section and complete the process.

If your panel pc is motherboard model J1900. We started the panel pc. We enter the bio by pressing the Delete button. In the Main section, we select Windows 8.x in the OS selection section. We enter and save F4 ENTER and continue our setup.

This error, which we call disk reading error, is a Windows crash problem known to the public. We encounter this error because there is no Windows software in the HDD to read. The solution is to install Windows again.

If your Pos pc is motherboard model J1900. We started the pos pc. We enter the bio by pressing the Delete button. We select Windows 8.x in the OS selection section in the Main section. We enter and save F4 ENTER and continue our setup.
