TX-1500S

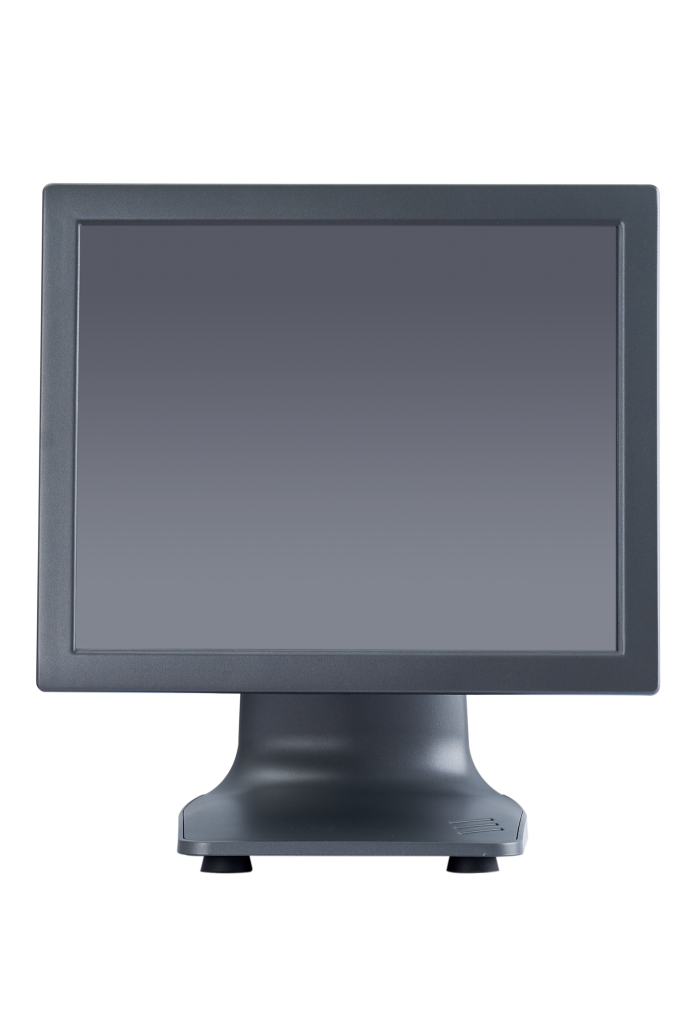

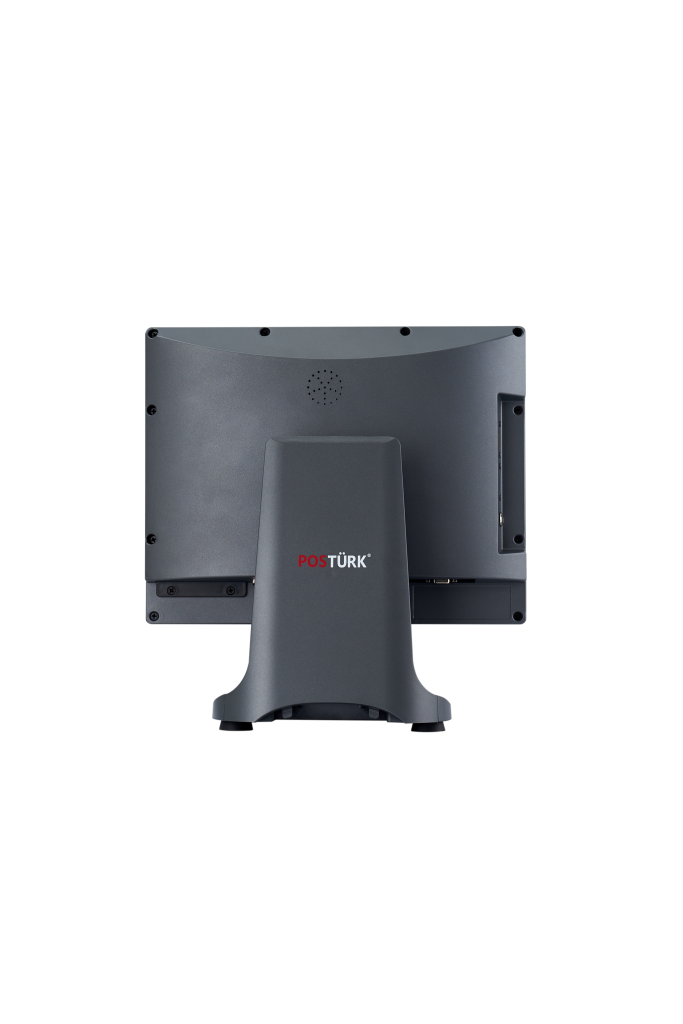

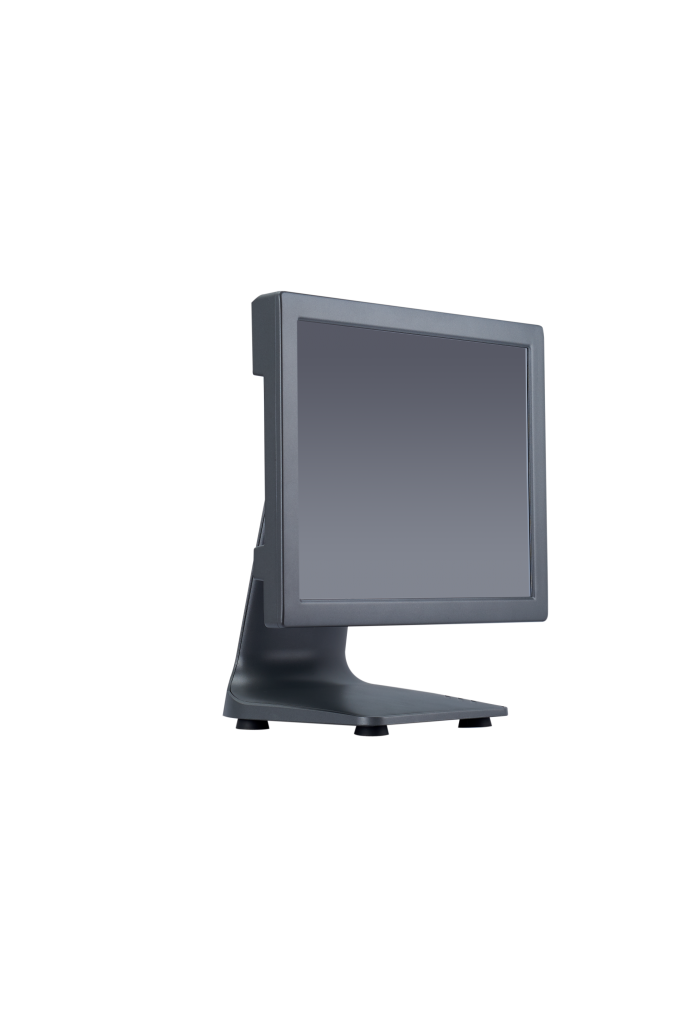

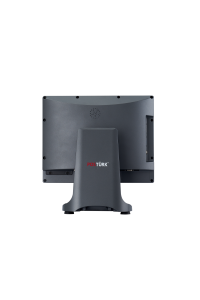

15'' All In One Touch Pos
- Integrated Display
- Touch Screen , 5 Wire Resistive Touch Screen
- High Quality Case,Aluminum Casting & Plastic
- Selectable Different CPU Classes ( Bay Trail J1900,Core - I3/I5/I7)
- Fanless Cooling ( No Ventilation)
- Multiple Connect Options 4 x USB 2.0, 2 x USB 3.0, 1 x Ethernet, 2 x RS232

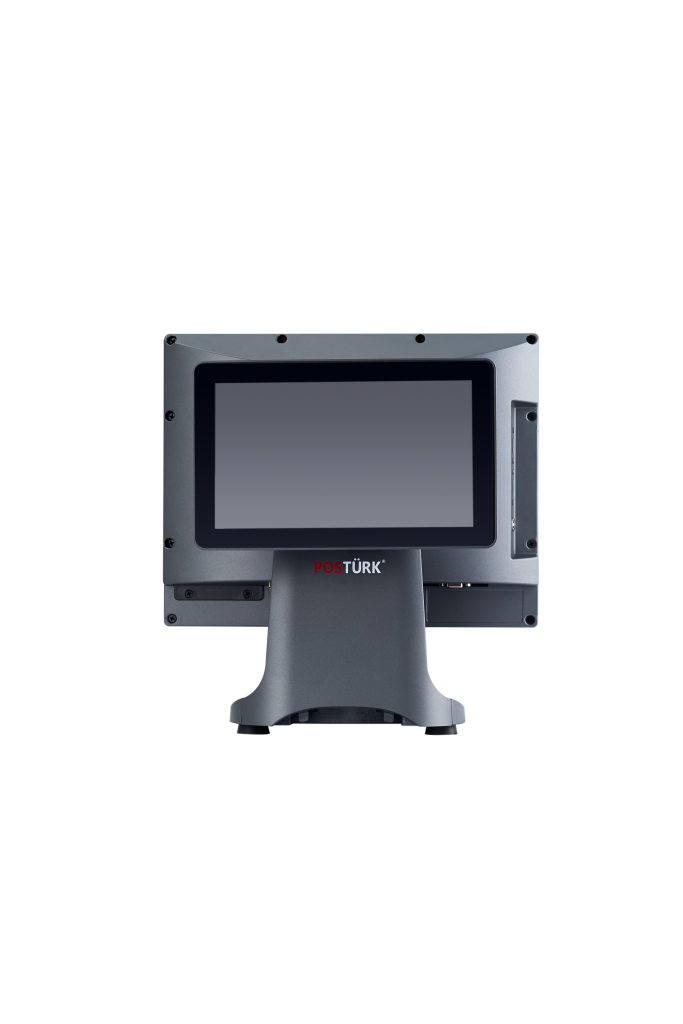

- 10.1'' Screen on Demand , VFD Support
- Vesa Mounting Slots
- 2 Years Warranty
15''
Share
MODEL J1900 I5
Processor Intel BayTrail J1900 2.0 GHZ (Quad Core) Intel Celeron/Pentium/CoreTM I3/I5/I7 processor
Chipset Intel BayTrail - D Intel Nm70 Express
Memory (RAM) 4GB DDR3 SODIMM to 8GB (1333/1666 MHz) 4GB DDR3 SODIMM to 8GB (1333/1666 MHz)
Graphics Memory Intel HD Graphics E3800 Core Intel HD Graphics 520
Flash Disk 120 GB SSD HDD 2.5’’ /MSATA 120 GB SSD HDD 2.5’’ /MSATA
HDD (option) 1 x HDD 2.5’’ (rack mounted) 1 x HDD 2.5’’ (rack mounted)
Touch Panel 15 “ LED LCD projected Resistive panel 15 “ LED LCD projected Resistive panel
Resolution 1024 x 768 1024 x 768
INPUTS/ OUTPUTS
VGA 1 1
Power Button 1 1
USB 4 x USB 2.0 + 2 x USB 3.0 4 x USB 2.0 + 2 x USB 3.0
Serial/COM 2 x RS-232 1 x LPT (Option) 2 x RS-232 1 x LPT (Option)
LAN 1 LAN 10/100/1000 1 LAN 10/100/1000
Cash drawer 1 x RJ 11 (12V / 24V) Option 1 x RJ 11 (12V / 24V) Option
Display Port 1 (for 2nd screen) 1 (for 2nd screen)
HDMI 1 1
DRIVERS
Customer Display Graphic customer display (high readability) - (option)
Mini PC port Integrated
Power Supply Adapter 12V / 4-7A
Dimensions (W x H x D) 250 x 310 x 160mm / (working position tilted at 45°)
Net Weight 5.6 kg / (not including power supply or customer display)
Materials High Quality Case, Aluminum Casting & Plastic
Colors 1 modul colours (Black)
Comptatible OS Windows 7, Windows 8.1, Windows 10, Posready 7
OPTIONAL ACCESSORIES
Graphic Customer Display (high readability)
Card reader
10.1 '' Back Screen Support (high resolution)

15” Touch Computer Frequently Asked Questions

Pos pc; It is a system developed to accelerate business in businesses. With the system operating with touch screen, you can take control of operations such as customer tracking, stock tracking in a short time and maximize your expectations. Pos pc, which can be used in businesses such as restaurants, cafes, bars, markets, and all other sales points, is a system that allows staff to place orders on the servant in the cash register and in other departments through hand terminals. It is a system that can work with the addition of optional equipment such as cash drawer, magnetic card reader, customer screen and printer. Pos pc, which allows the operation speed to increase with 10.1 ” 15 ” 15.6 ” 17 ” 18.5 ” 21.5 ” touch monitor options, can be adjusted in different models according to the demand of the enterprise thanks to its adjustable screens.

Pos terminal; It is a system developed to accelerate business in businesses. With the system operating with touch screen, you can take control of operations such as customer tracking, stock tracking in a short time and maximize your expectations. Pos terminal, which can be used in businesses such as restaurants, cafes, bars, markets, and all other sales points, is a system that allows personnel to place orders on the servant in the cash register and in other departments through hand terminals. It is a system that can work with the addition of optional equipment such as cash drawer, magnetic card reader, customer screen and printer. The pos terminal, which allows the operation speed to increase with the 10.1 ” 15 ” 15.6 ” 17 ” 18.5 ” 21.5 ” touch monitor options, can be adjusted in different models according to the demand of the enterprise thanks to its adjustable screens.

Open Galaxy touch. Choose Tools clear and calibrate. Touch the 4 dots that appear on the screen. After completing this process, press OK.

Windows 7 does not support 3.0 usb.

Multi touch (capacitive) touch panels do not need any driver to calibrate.

We click right on my computer. We choose the features. In the processor section, we see which motherboard your pos pc has. You can download the drivers you need according to the motherboard models from the support and downloads section at www.posclass.com/en

My computer right click. We choose manage. We choose disk management. System disk right click. We say shrink the unit. We write the MB we want to create in the amount of space to be reduced. We click on the Minimize section and complete the process.

If your Pos pc is motherboard model J1900. We started the pos pc. We enter the bio by pressing the Delete button. We select Windows 8.x in the OS selection section in the Main section. We enter and save F4 ENTER and continue our setup.

This error, which we call disk reading error, is a Windows crash problem known to the public. We encounter this error because there is no Windows software in the HDD to read. The solution is to install Windows again.

If your Pos pc is motherboard model J1900. We started the pos pc. We enter the bio by pressing the Delete button. We select Windows 8.x in the OS selection section in the Main section. We enter and save F4 ENTER and continue our setup.

If your Pos pc is motherboard model J1900. We started the pos pc. We enter the bio by pressing the Delete button. We select Windows 8.x in the OS selection section in the Main section. We enter and save F4 ENTER and continue our setup.

Pos pc advantages are a system with many features that can facilitate the work of the user. It has ideal features that can be used in businesses such as cafeterias, bars, restaurants and markets to handle customers’ transactions in a shorter time and to make calculations on a single screen. Pos PC, which can be used in many areas today, provides the easiest way for its users with its advantages.
