- Fanless Cooling ( No Ventilation)
- Multiple Connect Options 4 x USB 2.0, 2 x USB 3.0, 1 x Ethernet, 2 x RS232
- Bluetooth /WI-FI / Ethernet
- 1366 x 768 HD Resolution
- IP65 Level Sealing From Panel
- Vesa Mounting Slots
- 2 Years Warranty
MODEL | ||
---|---|---|
Processor | Rockchip RK3288 Quad Core Cortex-A17 1.8 GHz Processor | |
Chipset | Rockchip RK-3288 | |
Rockchip RK-3288 | 2 GB DDR3 | |
Disk | 8 GB | |
Touch Panel | Option | |
Resolution | 1366 X 768 | |
Dimensions (W x H x D) | 280 x 300 x100mm / (working position tilted at 45°) | |
Net Weight | 3.2kg / (not including power supply or customer display) |
INPUTS/ OUTPUTS | ||
---|---|---|
Power Button | ||
USB | 4 x USB 2.0 | |
Serial/COM | 1 x RS-232 | |
LAN | 1 LAN 10/100/1000 | |
Cash Drawer | 1 x RJ11 | |
Display Port | 1 (for 2nd screen) | |
Dc Adapter | 12V/4-7A |
FUATURES OF SQUARE BARCODE READER | ||
---|---|---|
Technology | Imager | |
Source Of Light | 630nm Visible Lasible Laser Diode | |
Sensor Detection | Available | |
Scanning Speed | Versatile 1400 Scans/Sec | |
Lazer Class | 1D/2D (Option) |
10.1” View Price NO – TOUCH Frequently Asked Questions

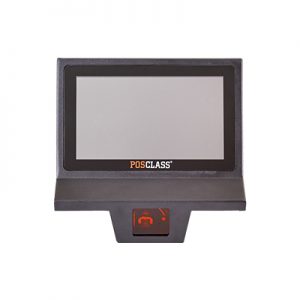

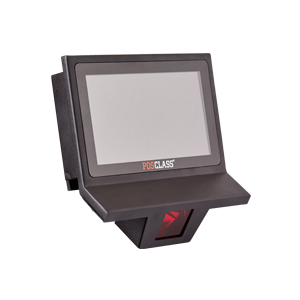

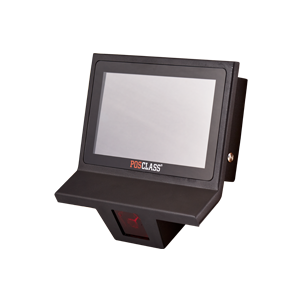

It features a built-in broadcast function with a 10.1-inch color display, capable of playing multimedia formats (including images and video) that can easily show store promotions and advertisements to customers. In addition, the (See Price) price checker supports remote web configuration management; Allows IT Manager to deploy store-wide updates from anywhere, anytime. It comes equipped with a rotatable browser window; provides flexibility to adjust the angle of the barcode scanner; This offers a versatile 1d Laser or 2d Imaging option.
Android motherboard is also available in view price.
Touch panel is not available in view price.
View price have Android 5.1.1 version.
The capacity of android motherboard is 8 gb.
Yes, can be increased with micro sd.
