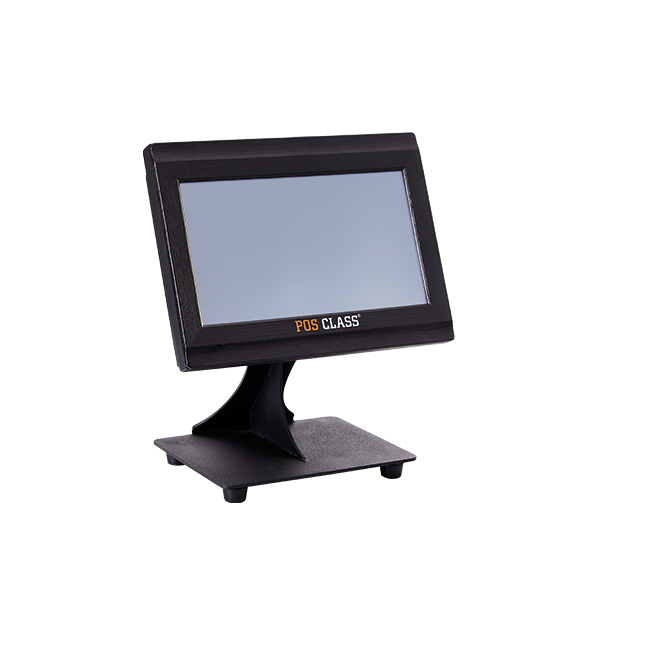

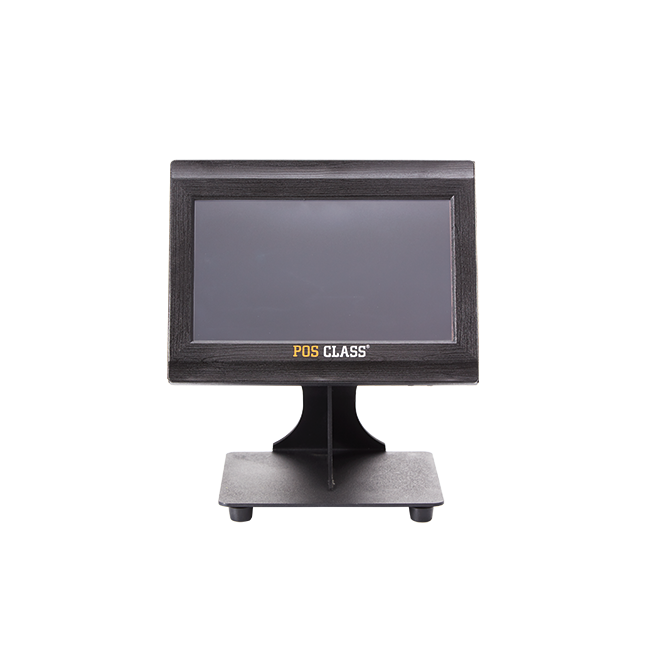

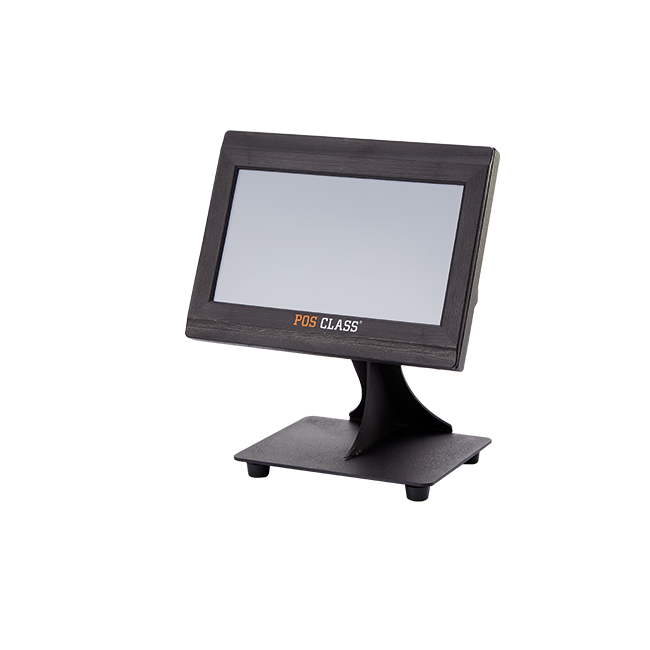

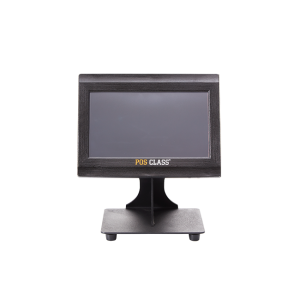

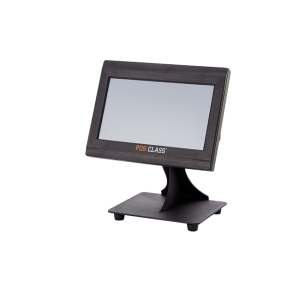

TCH-1010S
10.1'' Touch Monitor
- Touch Screen; 5 Wire Resistive Touch Screen
- 10.1'' LED LCD Panel
- Integrated Display
- High Quality Case, Aluminum Casting & Plastic
- 1366 x 768 Resolution And 300 Nits LCD Panel Brightness
- Height Adjustment With Dual Position foot
- VGA And DVD-D Image Inputs
- 12V DC Power Input
- USB Connection
- 2 Years Warranty
- 10.1'' LED LCD Panel
- Integrated Display
- High Quality Case, Aluminum Casting & Plastic
- 1366 x 768 Resolution And 300 Nits LCD Panel Brightness
- Height Adjustment With Dual Position foot
- VGA And DVD-D Image Inputs
- 12V DC Power Input
- USB Connection
- 2 Years Warranty
10.1''
Share
| TECHNICAL SPECIFICATIONS | ||
|---|---|---|
| Screen Size | 10.1'' | |
| Resolution | 1366 X 768 | |
| Color Capacity | 16.2 million colors | |
| Visible Angles | Horizontal 140° & Vertical 125° | |
| Reaction Time | 2/6 ms | |
| Contrast | 500 : 1 | |
| Contrast Ratio | 250 cd/m2 | |
| Video Signal Input | R/G/B Analog VGA/DVI (Option) | |
| OSD | Available | |
| Power | AC 100 240 12V 50/60 Hz | |
| Operating Tempurature | 0 °C~40 °C | |
| Touch Screen | Resistive (5 Wire) / USB ya da RS-232 | |
| Screen Glass Specifications | Unreflecting, Shockproof | |
| Color Options | Black |
10.1” Touch Monitor Frequently Asked Questions
It is the technology that allows electronic devices to be controlled by light touch by finger or special pens. Touch screens are divided into 3 as resistive touch screen capacitive touch screen and infrared touch screen.
Open Galaxy touch. Choose Tools clear and calibrate. Touch the 4 dots that appear on the screen. After completing this process, press OK.
Yes, there is a VGA output on the touch monitor.
We need to install the galaxy touch program on the computer to which we connect the touch monitor.
We can connect to all computers which have vga output.
