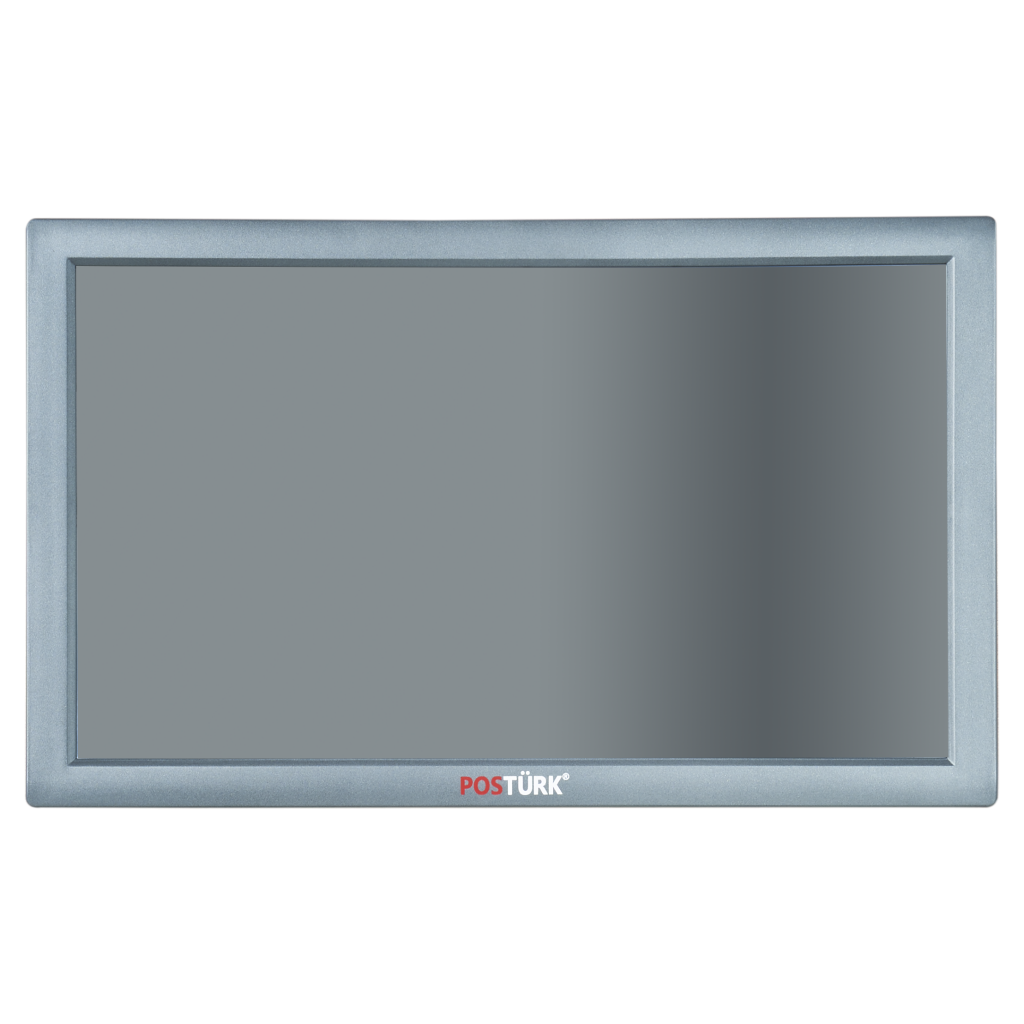

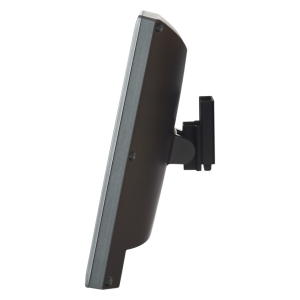

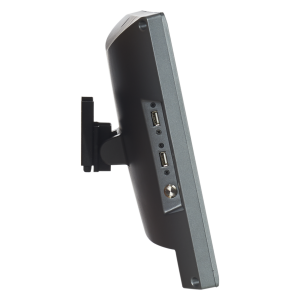

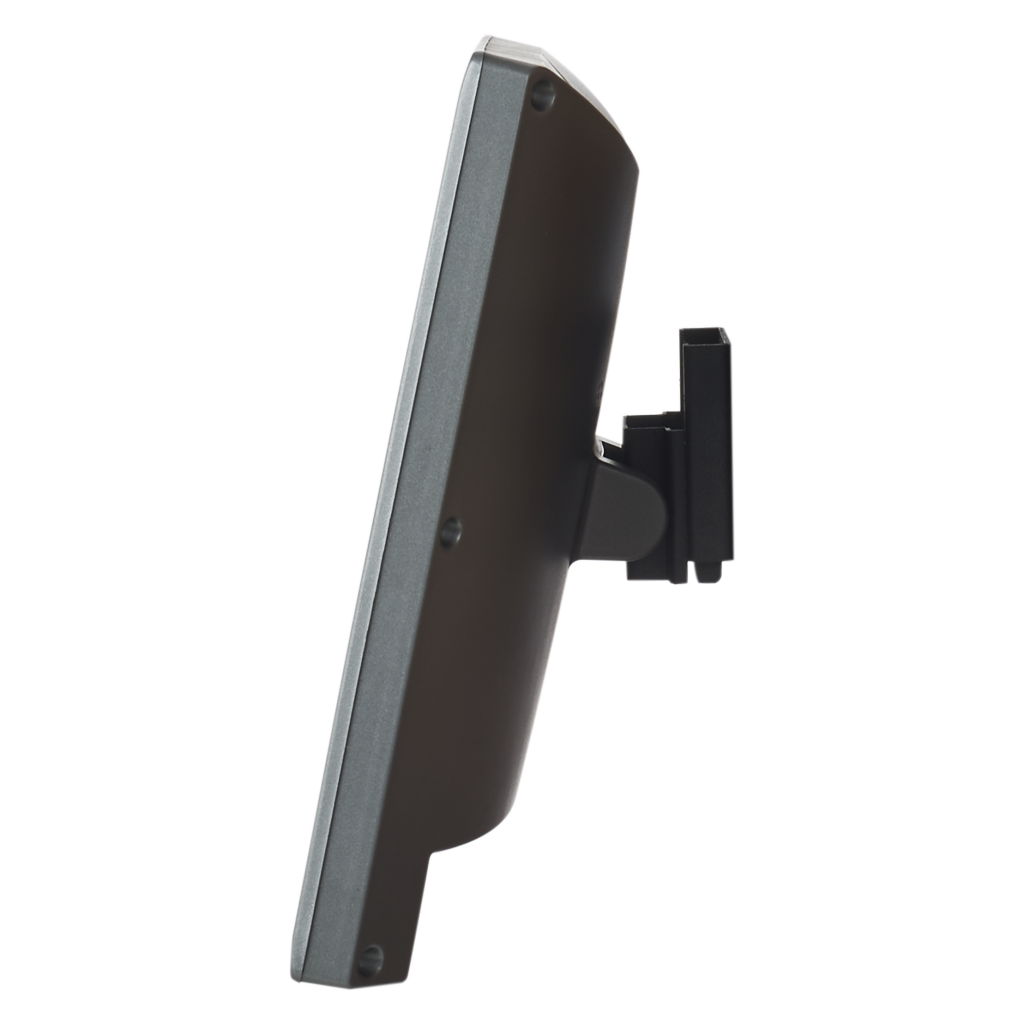

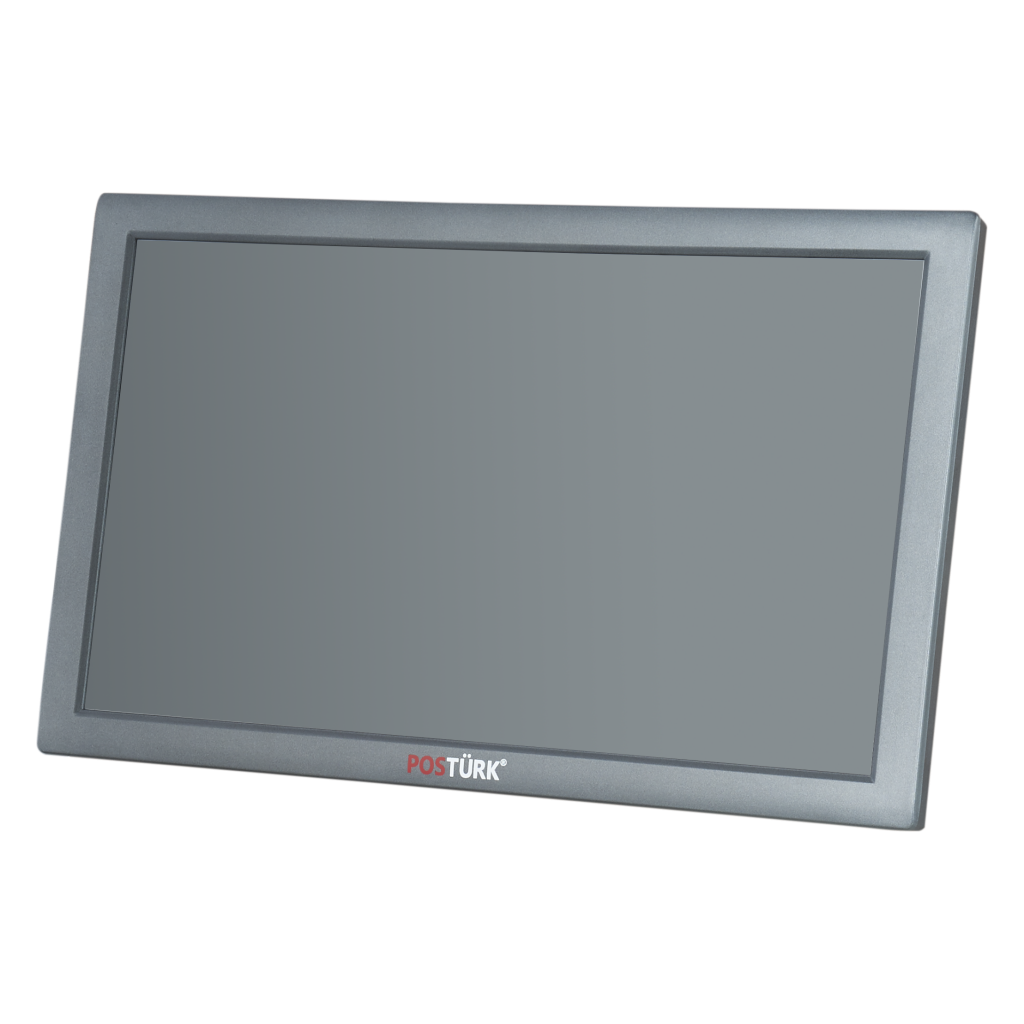

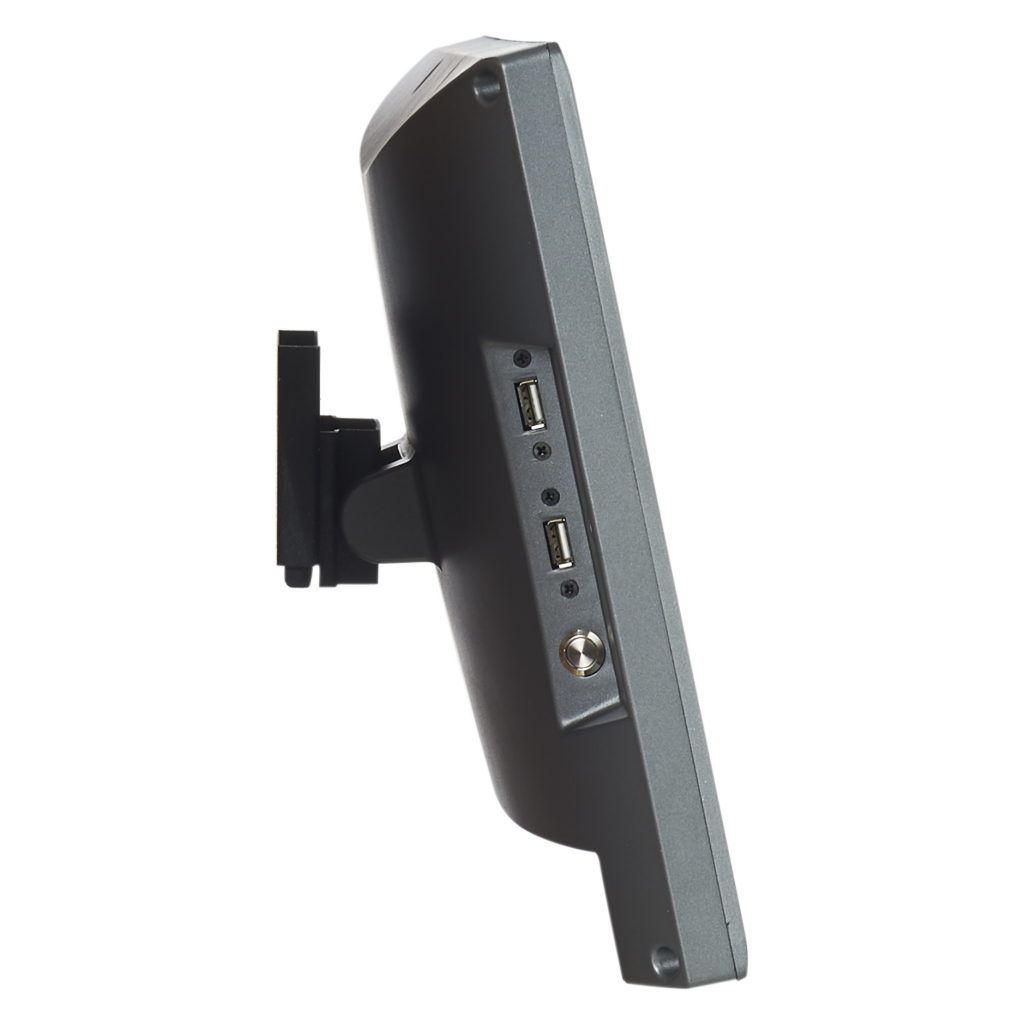

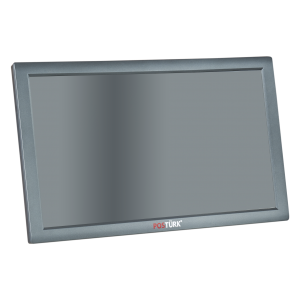

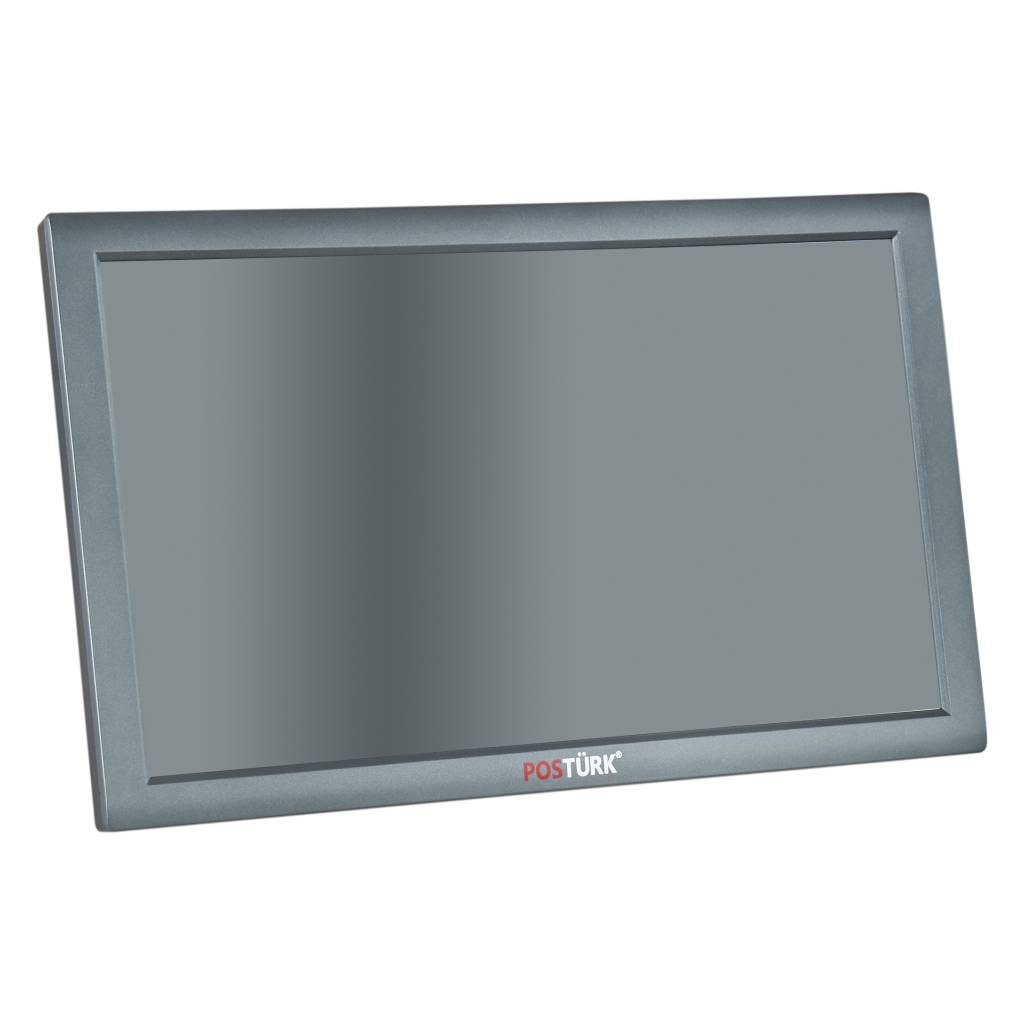

JH-1200B
PANEL PC
Bütünleşik Ekran
Ergonomik dokunmatik ekran ince, düz, resistive dokunmatik
Yüksek kaliteli kasa ve detaylı kaplamalar
2 farklı işlemci türü
Fansız EPOS terminali (havalandırma yok)
Çoklu bağlantı seçenekleri
Flash Disk SSD
Birlikte verilen çevre birimleri 10.1'’ Ekran VFD (İsteğe bağlı)
Siyah renk
18.5''
Hemen Paylaş:
MODEL J1900 İ5
İşlemci Intel BayTrail J1900 2.0 GHZ (Quad Core) Intel Core I5 6200U 2.30 GHZ
Chipset Intel BayTrail - D Intel Nm70 Express
Memory (RAM) 4GB DDR3 SODIMM to 8GB (1333/1666 MHz) 4GB DDR3 SODIMM to 8GB (1333/1666 MHz)
Graphics Memory Intel HD Graphics E3800 Core Intel HD Graphics
Flash Disk 60 GB SSD HDD 2.5’’ /MSATA 60 GB SSD HDD 2.5’’ /MSATA
HDD (optional) 1 x HDD 2.5’’ (rack mounted) 1 x HDD 2.5’’ (rack mounted)
Touch panel 18.5 “ LED backlight LCD projected Resistive panel 18.5 “ LED backlight LCD projected Resistive panel
Çözünürlük 1366 x 768 1366 x 768
DIVERS
Customer display Graphic customer display (high readability) - (option)
Mini PCIe port integrated
Power supply Adaptor 12V / 7A
Dimensions (W x H x D) 515 x 420 x 270mm / (working position tilted at 45°)
Net weight 6.10 kg / (not including power supply or customer display)
Materials cast aluminium and polycarbonate
Colours 1 modular colours (Black)
Comptatible OS Windows 8 Industry, Windows 7 Pro, POSready 7, POSready 2009, Linux

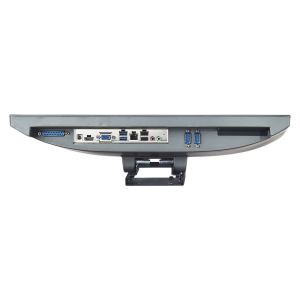

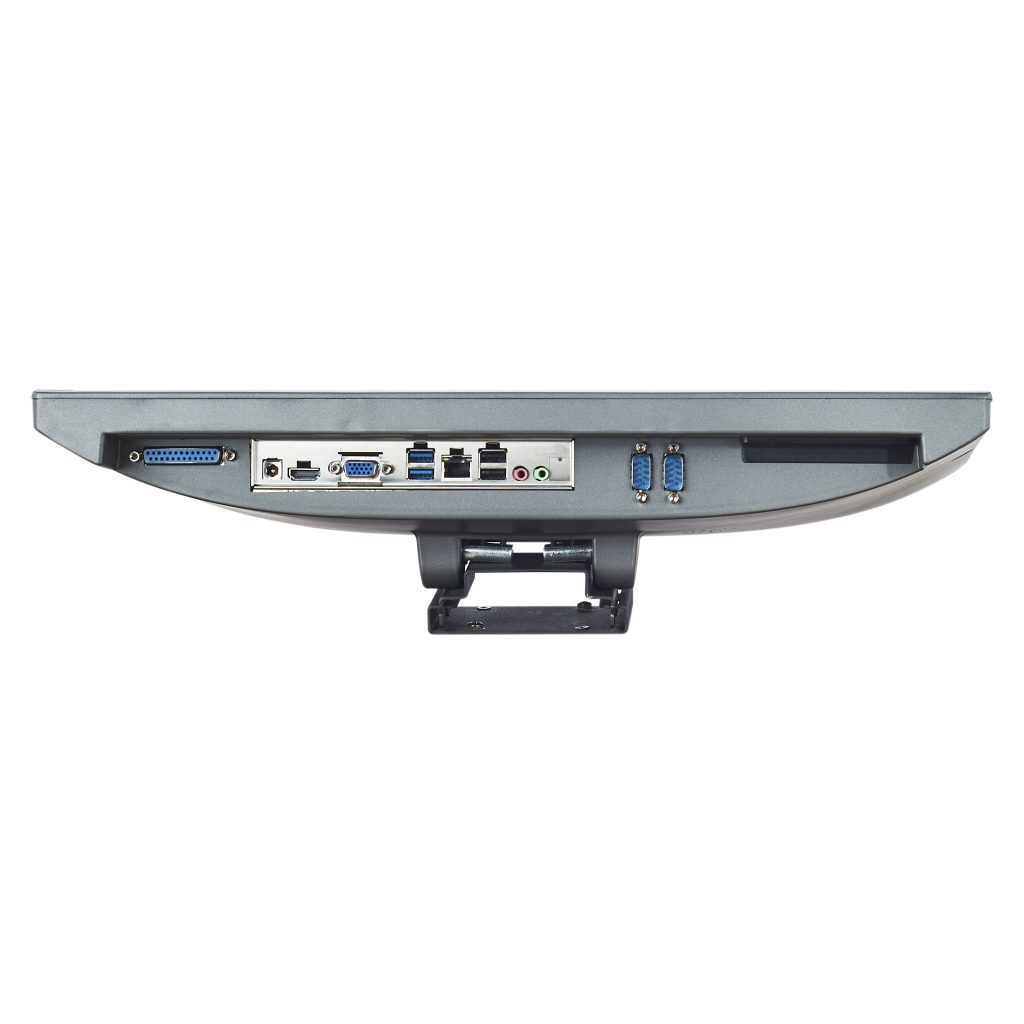

GİRİŞLER / ÇIKIŞLAR
VGA 1 1
Power Button 1 1
USB 5 x USB 2.0 + 1 x USB 3.0 6 x USB 2.0
Serial/COM 2 x RS-232 2 x RS-232
LAN 1 LAN 10/100/1000 1 LAN 10/100/1000
Cash drawer 1 x RJ 11 (12V / 24V) Opsiyonel 1 x RJ 11 (12V / 24V) Opsiyonel
Display Port 1 (for 2nd screen) 1 (for 2nd screen)
HDMI 1 1
OPSİYONEL AKSESUARLAR
Grafik müşteri ekranı (yüksek okunabilirlik)
Kart Okuyucu
10.1'’ Arka ekran Desteği(yüksek Çöznürlük)
